Description

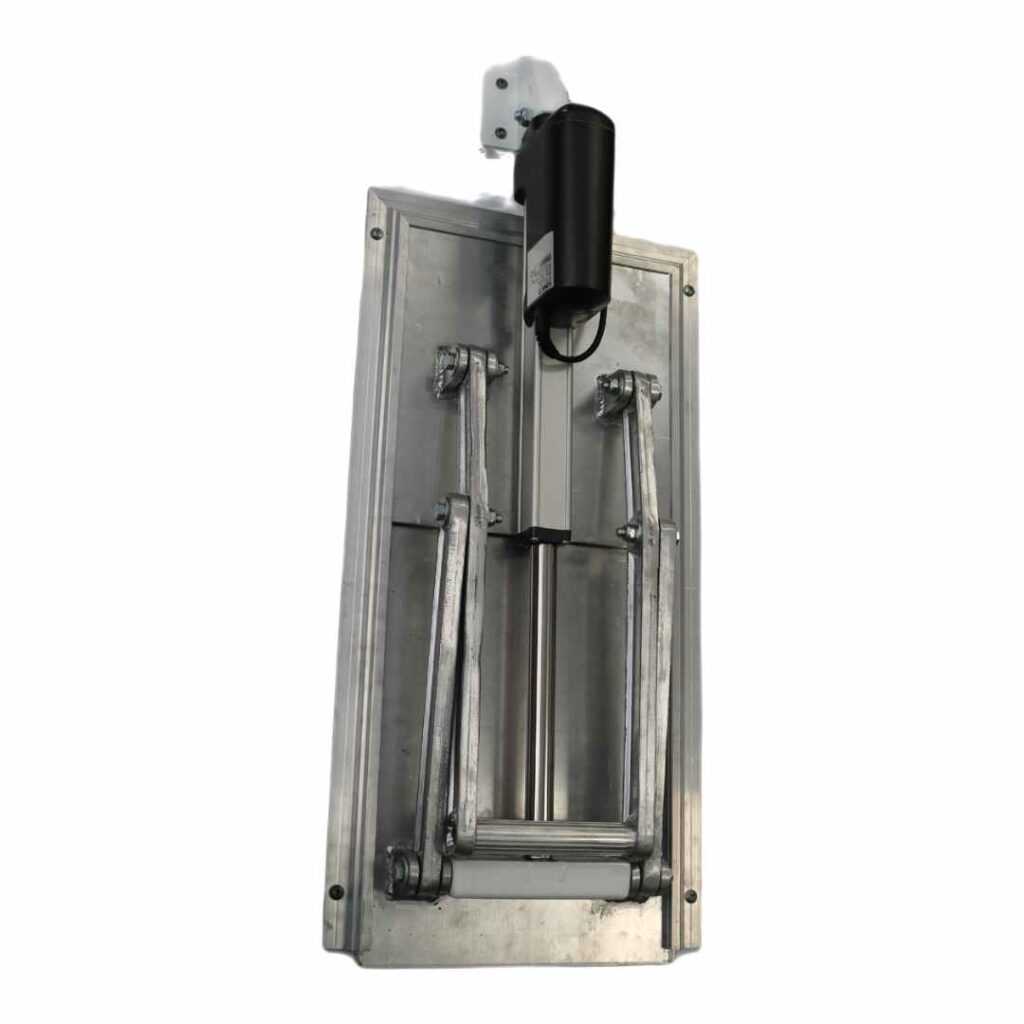

Upgrade your existing grain gate with an R&D Plus actuator and bracket kit, or choose a complete system incorporating our standard aluminium grain gate.
Developed in Australia in collaboration with key industry stakeholders, the R&D Plus Grain Gate System provides a reliable and efficient solution for controlled unloading. Combining a high-quality LINAK electric actuator with the remote-control system, it delivers convenient remote operation in a robust package built for Australian conditions.
Key Benefits
- Improve operator and driver safety by controlling the grain gate remotely from a safer location.
- Reduce product loss by providing better control over material discharge.
- Enable efficient single-person unloading.
- Retrofit the actuator and bracket kit to many existing grain gates.
- Configure the complete system to suit different vehicle manufacturers and applications.
- Benefit from a practical and cost-effective automated solution.
- Operate the system using Bluetooth control without relying on a separate handheld remote.
Technical Specifications
- Control system: ICARUS Bluetooth
- Operating range: Up to approximately 100 metres, depending on environmental conditions
- Supply voltage: 12-24 VDC
- Maximum current consumption: Less than 13 A
- Enclosure protection rating: IP66
- Operating temperature: −40°C to +60°C
- Status indication: Bi-colour LED—red and green
- Actuator: High-quality LINAK electric actuator
Contact R&D Plus to discuss a Grain Gate System configured for your vehicle and unloading requirements.
Note Gate Not Included.
