R420 Starter Set

Description

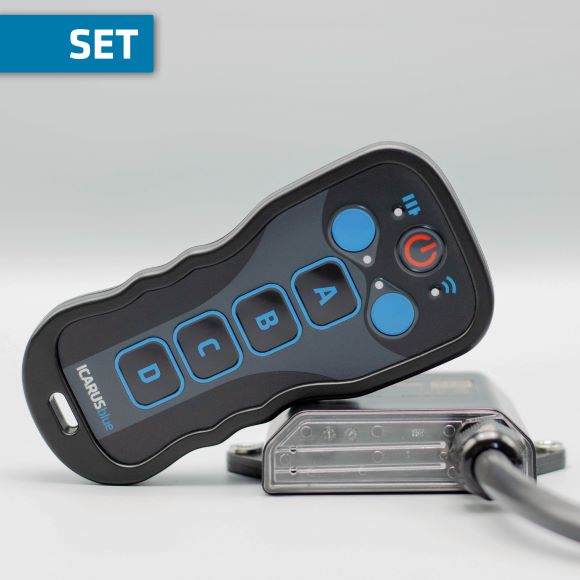

The perfect duo for professional users with extensive requirements. The set consists of a TM600 handheld transmitter and a R420 receiver with 4 outputs and 2 inputs.

Main Features
Bluetooth 5.0
9 – 36 Vdc Supply voltage
4 digital outputs / 2 digital inputs
Bidirectional communication
Approx. 100m range (when using a TM600)
Controllable and configurable via free app
IP69k protection (when using the transparent cover)
Pre-assembled cable (1.5m)
TM600 / Main features
Bluetooth 5.0
Bidirectional communication
Control of up to 16 functions (2XR variant in combination with two R820 receivers)
Ergonomic, compact and robust design
Long battery life (1350mAh)
Optical feedback via 4 multicolor LEDs
Convenient charging thanks to USB-C charging port
Ultra-fast response time (approx. 50ms)
Approx. 100m range
incl. 1m USB charging cable, belt clip and alternative cover plate for the back side
Two control options in one
All R-Series receivers can also be controlled via smartphone app. And since almost everyone has a smartphone these days, you already have an additional free control option in your pocket!

Click here to download the official datasheet (PDF)

Additional Information
Configuration
S3, Individual

Inputs
2

Outputs
4

Product type
Set
