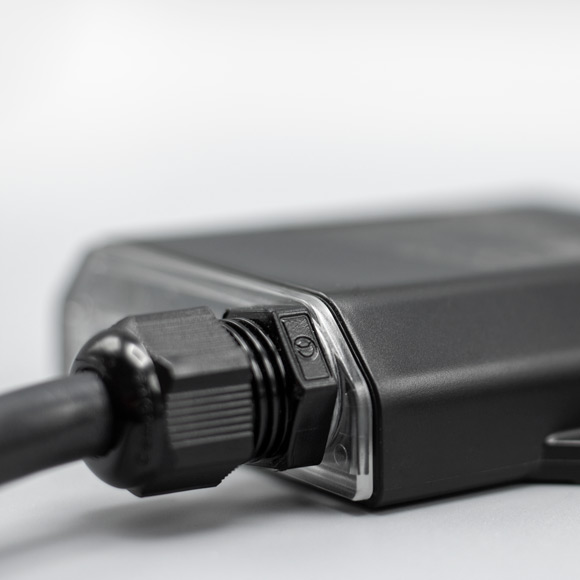

R420 Receiver

Description

With 4 digital outputs and 2 digital inputs at an unbeatable price, the R420 receiver is the perfect entry-level model and solution for your application. Thanks to the latest Bluetooth 5.0 technology (with bidirectional communication) and a compact and robust design (IP69k), it still covers numerous application areas – simply and safely!

Main Features
Bluetooth 5.0
9 – 36 Vdc Supply voltage
4 digital outputs / 2 digital inputs(Note: Inputs can only be used by individual configurations ).
Bidirectional communication
Approx. 100m range (when using a TM600; depending on the mounting position of the receiver as well as the general environment)
Controllable and configurable via free app
IP69k protection (when using the transparent cover)
Pre-assembled cable (1.5m)

Two Control Options in One
All R-Series receivers can also be controlled via smartphone app. And since almost everyone has a smartphone these days, you already have an additional free control option in your pocket!

Click here to download the official datasheet (PDF)

Additional Information
Configuration
S3, Individual

Inputs
2

Outputs
4

Product type
Receiver

Compatible with
ICARUS blue R-Series app (Android), TM600 transmitter
